Congratulations on receiving your new equipment. This quick start guide will assist you with self-installing the Elo PayPoint Plus all-in-one terminal and registering the device with your Parse Pay account.

TABLE OF CONTENTS

• Before You Start
• Hardware Setup
  • Step 1: Connect Power & Internet
  • Step 2: Install Receipt Paper
  • Step 3: Power on Device

Before You Start

Before setting up your new equipment, ensure that your site meets the setup requirements. You will need a power source conveniently located near the desired location plus a fast and reliable Internet connection. For additional information, check out our list of requirements or contact your Parse Pay Account Specialist.

Hardware Setup

Setting up the PayPoint Plus all-in-one solution is a breeze.

Step 1: Connect Power & Internet

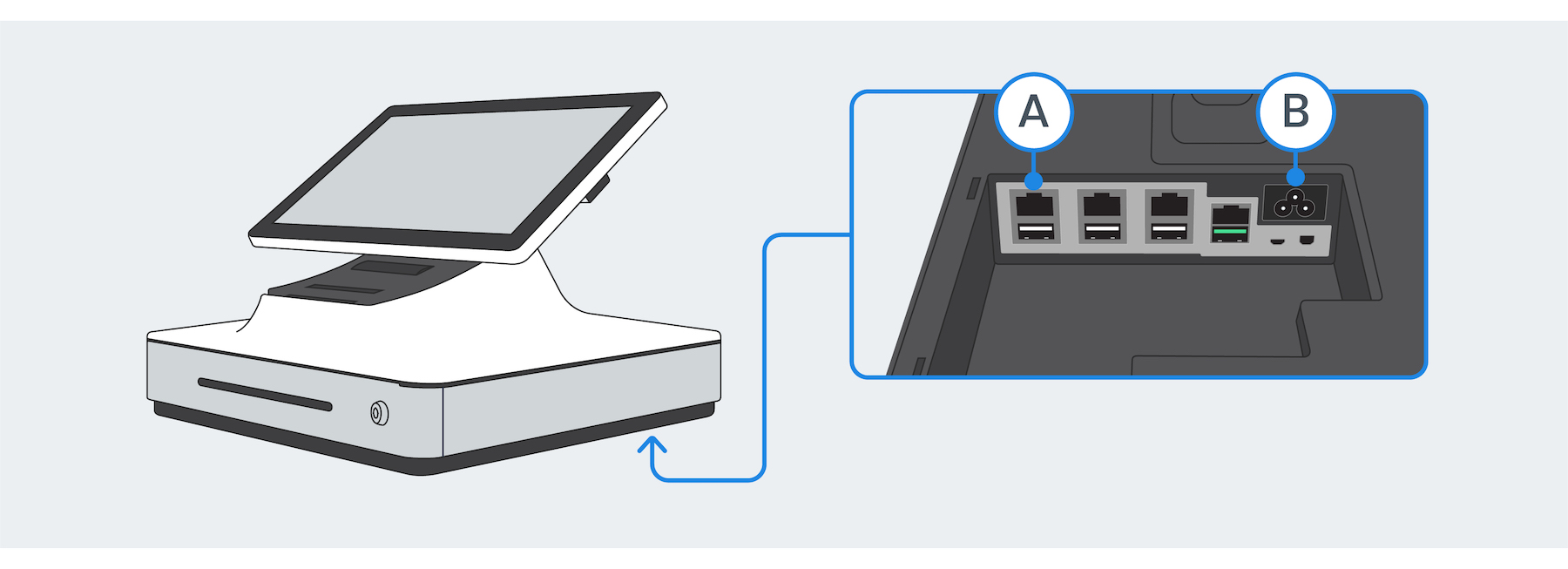

The connections are located underneath the register. If using a LAN connection, plug the ethernet cable into the ethernet port (A). Next, plug the supplied power cord into the power connector (B) and plug the device into a power outlet.

Step 2: Install Receipt Paper

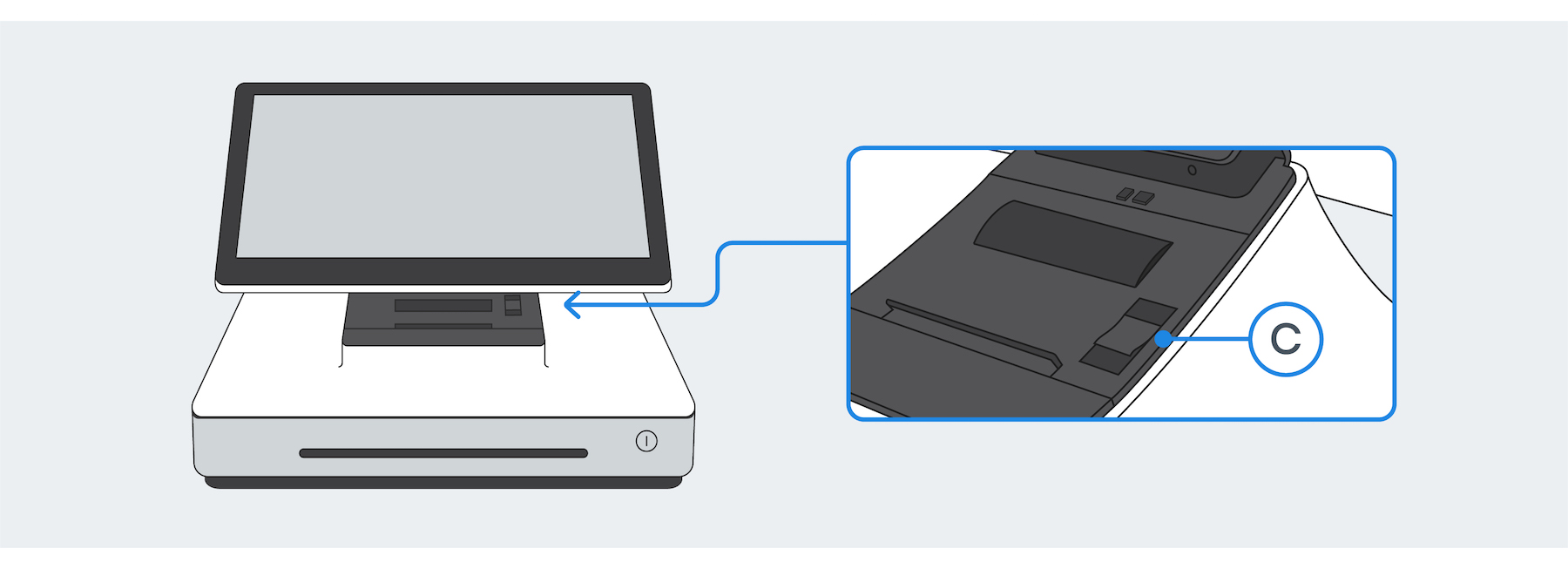

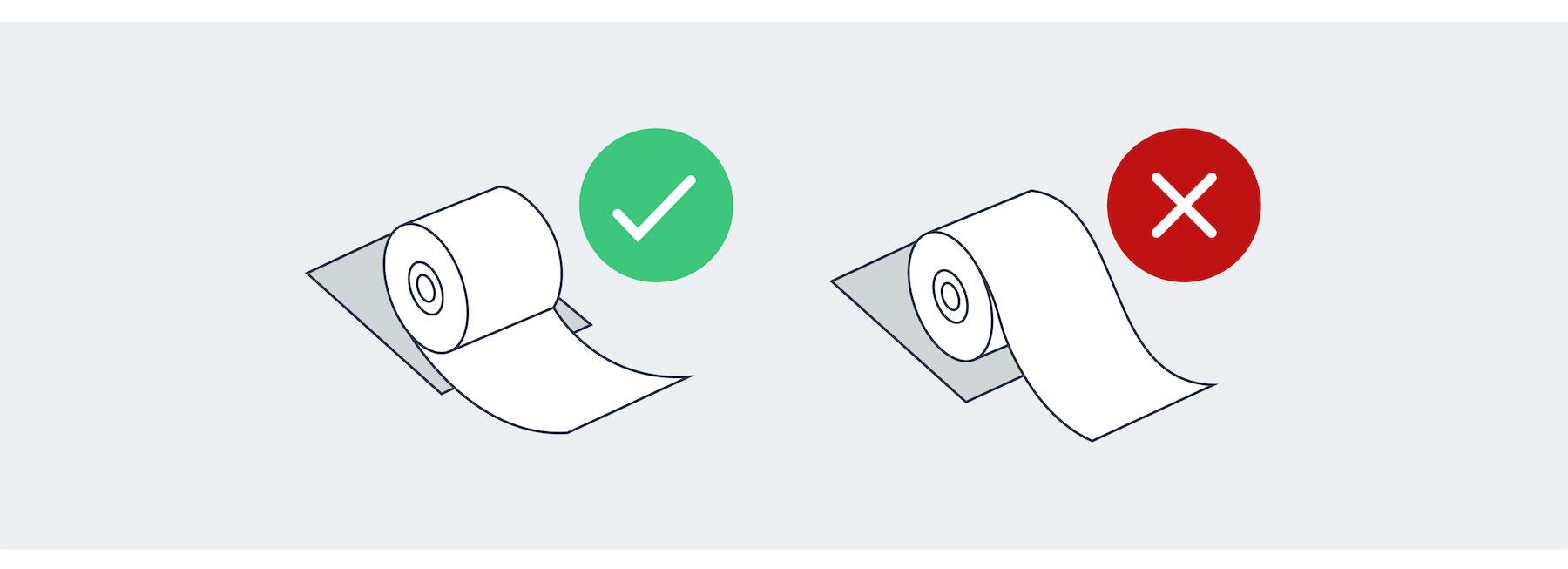

Flip the display head away from the receipt printer (in the customer-facing view). Pull the receipt printer release lever (C) to open the printer lid and install the supplied receipt printer. Note the correct paper orientation from the picture below.

Step 3: Power on Device

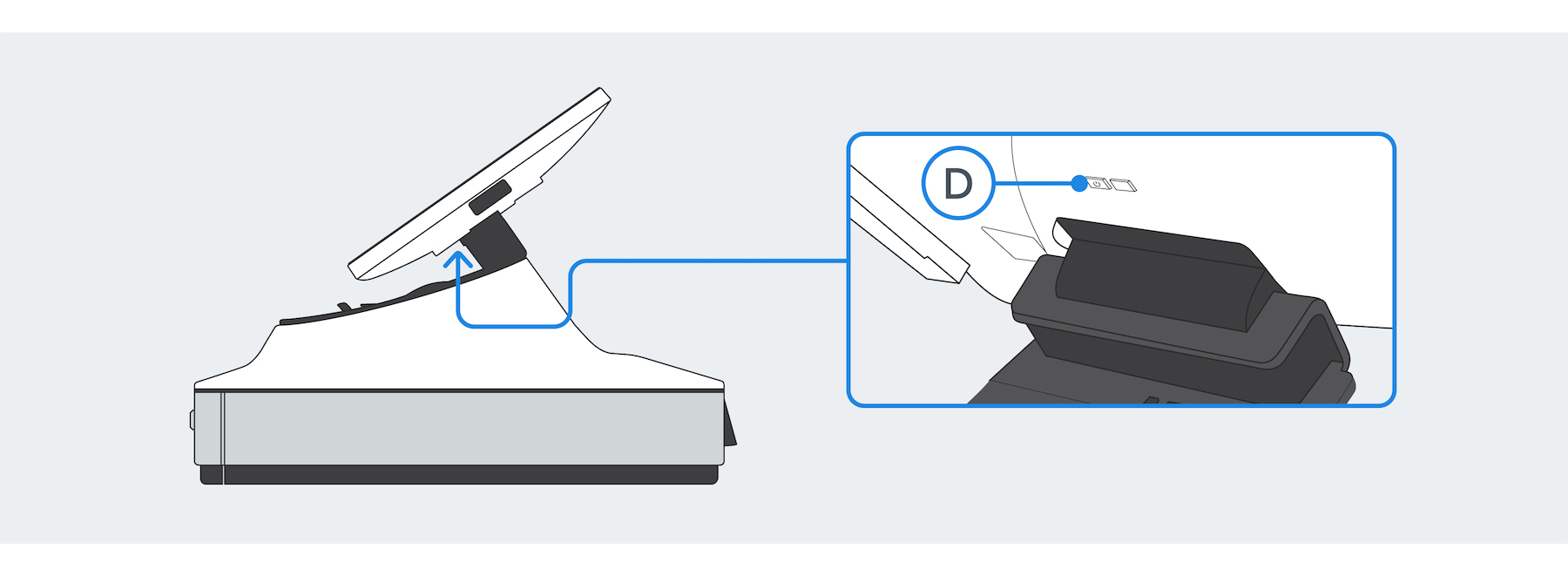

Press the power button (D) located on the back of the display head. If connected by LAN, the registration will start automatically. If using Wi-Fi, press and hold the power button for 3 seconds and release to enter the Wi-Fi setup page. Tap Networks and connect to your wireless network. The registration process will begin once the device establishes a connection to the network.
